NetSure 8200 (582140000)
The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.
NetSure 8200 (582140000)
The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.
Vantagens
Recursos
Especificações
- Product Overview
- Power Capacity
- 1 MW
- Current Capacity
- 20,000 A
- Output Voltage, Nominal
- 48 VDC
- Input Voltage, Nominal
- 208 or 480 VAC, 3-phase
- System Type
- Power Bay
- Input
- Input Voltage, Nominal
- 208 or 480 VAC, 3-phase
- Tensão de Entrada, Operacional
- 408-528 VAC to 176-264 VAC
- Equipment Dimensions (H x W x D)
- Combo Bay List 101 and List 111 93.5"x24"x30",830 lbs., Combo Bay List 102 and List 112 84"x24"x 30", 830 lbs., AC Distribution Bay (PDSC): 84" x 1
- Access
- Front and rear
- Output
- Output Voltage, Nominal
- 48 VDC
- Tensão de Saída, Operacional
- 42.0 VDC to 58.0 VDC
- Capacidade de Saída
- 12,000 W rectifier

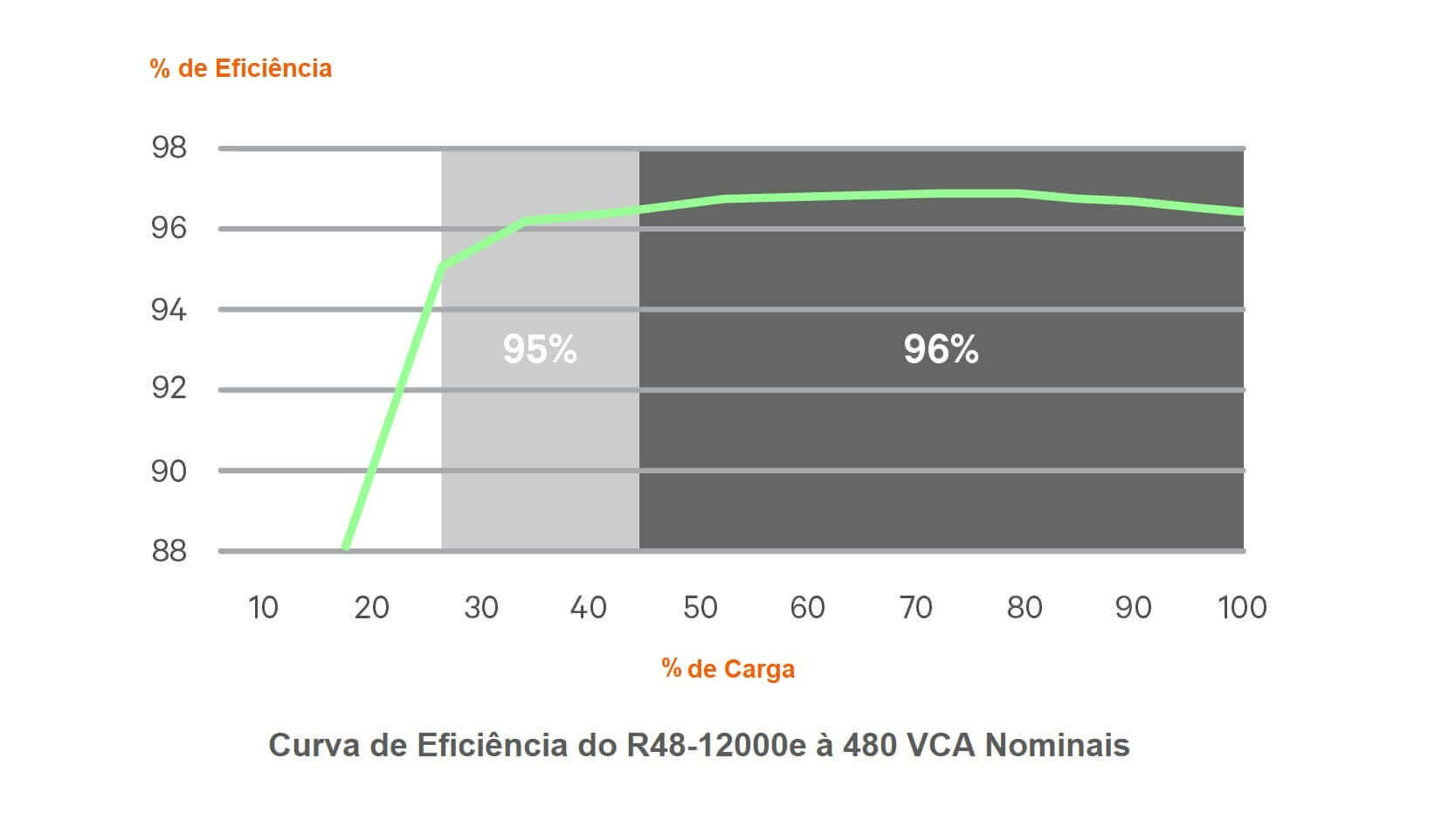

- Eficiência Máxima
- 96.1% (480 VAC), 95.7% (208 VAC)
- Disjuntores / Fusíveis de Carga
- TPS/TLS, TPL Fuses or GJ/218-Style breakers
- Environmetal & Standard Compliance
- Controle e Monitoramento
- NCU controller
- Temperatura de Operação
- 0 °C to +40 °C (+32 °F to +104 °F)
- Conformidade de Segurança
- UL Listed (UL1801), CSA 22.2 (No. 225), c UL, NEBS Level 3
*Para ver downloads específicos de modelos, é necessário acessar a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
